45mm – 82.5mm (1.77in – 3.25in) Heavy...
CUSTOM VK80
45mm – 82.5mm (1.77in – 3.25in) Heavy Duty Thermal Ticket Printer
For bulk orders please contact us.
Heavy duty capability in a small package. 200 dots per inch or 300 dots per inch quality printing at up to 200mm/sec on paper weights from 90g/m² to 250g/m². This is complemented by a 1,500,000 operation cutter and 100km printed paper head life.
VK80 high duty capability is accompanied by the flexibility of printing on paper widths from 45mm to 82.5mm and Ethernet and USB interfaces on all models with RS232 serial also on the VK80 200 model with lateral connectors and the VK80 300 model. The powerful feed motor can drive paper rolls up to 300mm diameter, note that the optional roll holder is designed for rolls up to 180mm outside diameter, roll holding arrangements for larger rolls will need to be incorporated by the cabinet designer.
P/N: 915DY010100J00 / 915DY020200700
Unique Features
- Extremely compact and flexible
- Network printer, programmable IP address
- CUPPS drivers
- Connectors behind the chassis, to facilitate installation within kiosks
- Powerful motor for large paper rolls
- Easy maintenance
Additional Features
- High quality printing with 200 DPI and 300 DPI models available
- High speed printing, up to and over 200mm/sec
- Adjustable ticket widths from 20mm to 82.5mm
- Paper weights of 80 g/m² to 350 g/m²
- Fan-fold or paper roll
- Ethernet, USB and RS232 as standard
- Fan-fold or paper roll
- Highly reliable cutter – 1,500,000 + cuts
Printing Method | Thermal with fixed head |
Number of dots | 8 dots/mm |
Resolution | 203 DPI / 304 DPI |
Printing (mm/sec) | 200 mm/sec |
Character set | PC437, PC850, PC860, PC863, PC865, PC858 (Euro) |
Printing Direction | Straight, 90°, 180°, 270° |
Paper width | From 45 mm to 82.5 mm |
Paper weight | from 90 to 250 g/m² |
Roll Dimension | Up to 180mm (300mm with customer roll holder) |
Emulation | Escape Command compatibility |
Interfaces | Ethernet + USB / USB + Serial RS232 + Ethernet |
Data Buffer | 24 KB |
Flash Memory | 384 KB |
Graphic Memory | 2 logos 608×862 dots |
Drivers | XP, Vista, 7, Full Status Monitor, CUPPS, Linux; JavaPOS |
Software Tools | FontMake, LogoMake, UpgCePrnInstall, Status Monitor |
Power supply | 24 Vdc ± 10% |
Medium consumption | 1.1A (12,5% dots turned on) if 200dpi 1.4A if 300dpi |
MTBF | 500,000 hours (electronic board) |
Head Life | 100Km / 100M pulses |
MCBF | 1,500,000 cuts |
Operating temperature | 0°C + 50°C |
Dimensions | 123 (L) x 95.7 (H) x 117 (W) mm |
Weight | 1.6 Kg |
Auto-installing software, easy installation, includes the Status Monitor, standard driver’s information, logos and fonts management. |
Additional printing driver component that gives remote visibility of paper and printer status, jams, near-end of paper and end of paper status and information on the number of tickets or prints. The software can even be set to send email alerts, making easier remote maintenance operations. |
The “CustomPrint” APP developed by Custom allows for printing of text(complete with special characters) and graphic with excellent quality prints. Available on Google Play allows the user to print directly from tablet or smartphone, via Bluetooth and/or wi-fi, all the data contained including: Calls list, Text, SMS, 2D Barcodes, Events, Contacts, Pictures/photos, Webpages. |
The “CustomPrint” APP is also available in the app store for iOS. Its features are the same of its ANDROID counterpart, being capable of printing text, images and barcode (1D & 2D) via Bluetooth and/or Wi-Fi. |
allows the remote monitoring of the printer status, the automatic email sending for service purposes and the remote updating of logos and font (only for 200dpi version). |
software able to search the printers connected to the network and then set their parameters. |
allows the direct printing on different Custom printers with no needing of development libraries or additional print drivers. Running Android version 4.4 and higher. Easily print from Android applications (Gallery, Browser, etc) when your smartphone or tablet is connected to a compatible Custom printer through Bluetooth, WiFi, USB, Ethernet interface. Control print settings including color, number of copies, paper orientation, Cut mode and presentation. |
Available Versions
Description | Part Number | |
---|---|---|
PRINTER VK80 ETH USB REAR CONNECTORS | 915DY010100J00 | |
PRINTER VK80 ETH USB SIDE CONNECTORS 300DPI | 915DY020200700 |
Included with Packaging: VK80 Printer, Power Supply Cable, Near Paper End Sensor.
Options
Description | Part Number | |
---|---|---|
Cable Adapter Power Supply | 26900000000005 | |
Power Supply 60W FSP DIN CONNECTOR | 963GE020000053 | |
Kit NPE External + Cable 450mm K80 | 976LC010000002 | |
Kit Holder Bracket +QFC VKP80II | 974DW010000001 | |
OEM Power Supply Cable 1m | 26300000000579 | |
Cable RS232 9M / 9F 1.8M | 26500000000352 | |
Cable USB A male B male 1.8m | 26500000000356 | |

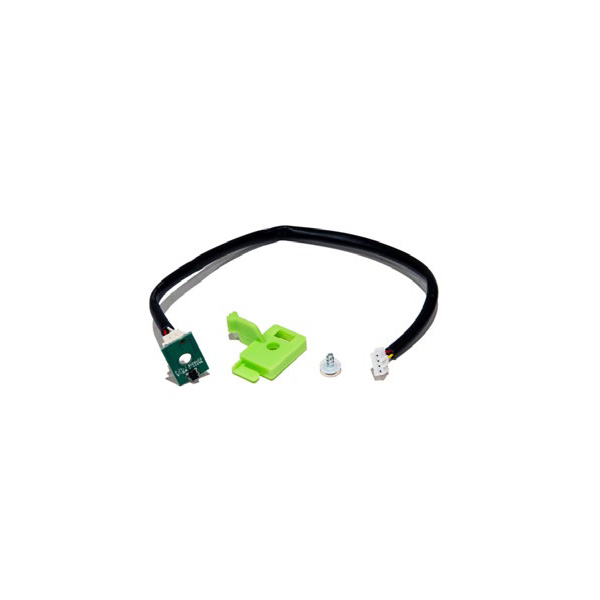

Kit Cable NPE L230mm + BOARD NPE VKP80III | 976DX010000004 | |
Euro Shuko Plug Power Cable (C13 Connector) | 26100000000311 | |
UK Shuko Plug Power Cable (C13 Connector) | 26100000000313 |
Consumables
Description | Part Number | |
---|---|---|
Thermal Paper Roll L80 DE130 DI26.5 55GR | 67300000000380 |
